copy of ARB

ARB

Reference ARB-1780500

• Specially designed to provide optimal lighting during driving.
• The design of the bar prevents the light from bouncing on the hood and bumper.
• The combined beam technology offers excellent medium- and long-range propagation.
• Polycarbonate lens practically indestructible.
• Extruded aluminum body painted in textured black.
• Stainless steel hardware 304.
• Protection against polarity reversal.
• Sniff with pressure-tight seal.
• Vibration and UV resistant.
• Heat management.
• Dust and Water Resistant (IP68)
• Protection against overvoltage and subvoltage.
• Protected against radiofrequency (RFI) and electromagnetic interference (EMC).
• Two-pin waterproof plug.
• ARB -3500810 and 3500820 cabling can be used
• Certification R10, CE and ROHS

Characteristics:
- Voltage: 12V to 48V
- Power: 130W
- Power consumption: 9.2 A to 14.4 V
- Luminous flux: 9,279 lumens (gross) - 8,552 lumens (effective)
- Distance: 728m / 1 lux
- Horizontal diffusion: 8°
- Vertical diffusion: 6°
- Cable length: 330 mm (male)
- Temperature range: -40°C to +65°C (-40°F to +149°F)
- Colour temperature: 5,500-6000K
- Estimated life: 50,000 hours
- Weight: 3.07 kg
- Plug: 2 waterproof pins
- Dimensions: 954 mm (37.55") (L) x 67 mm (2.63") (L) x 34 mm (1.33") (H)

Comments:

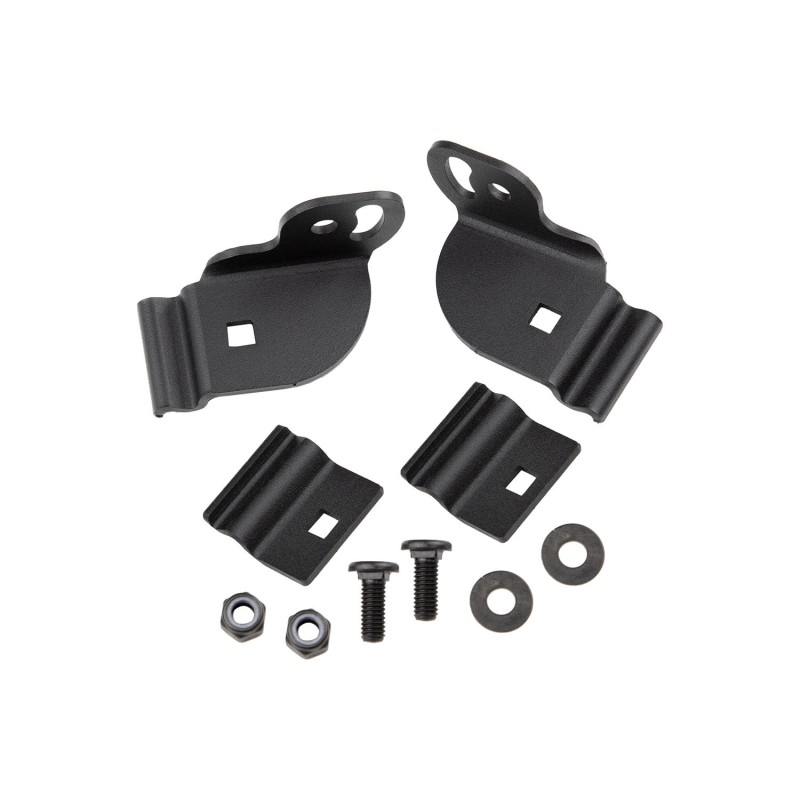

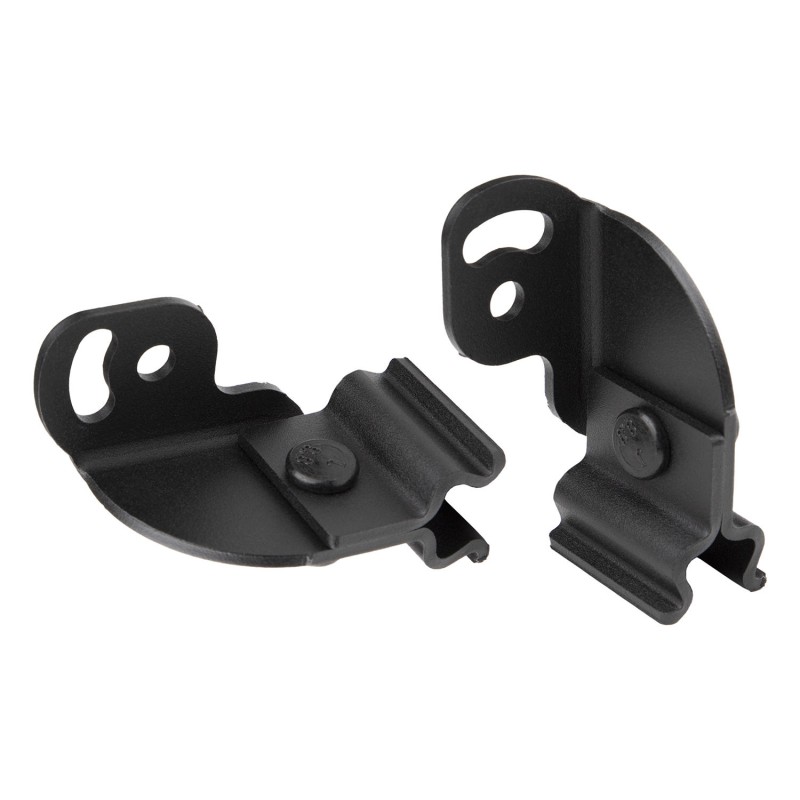

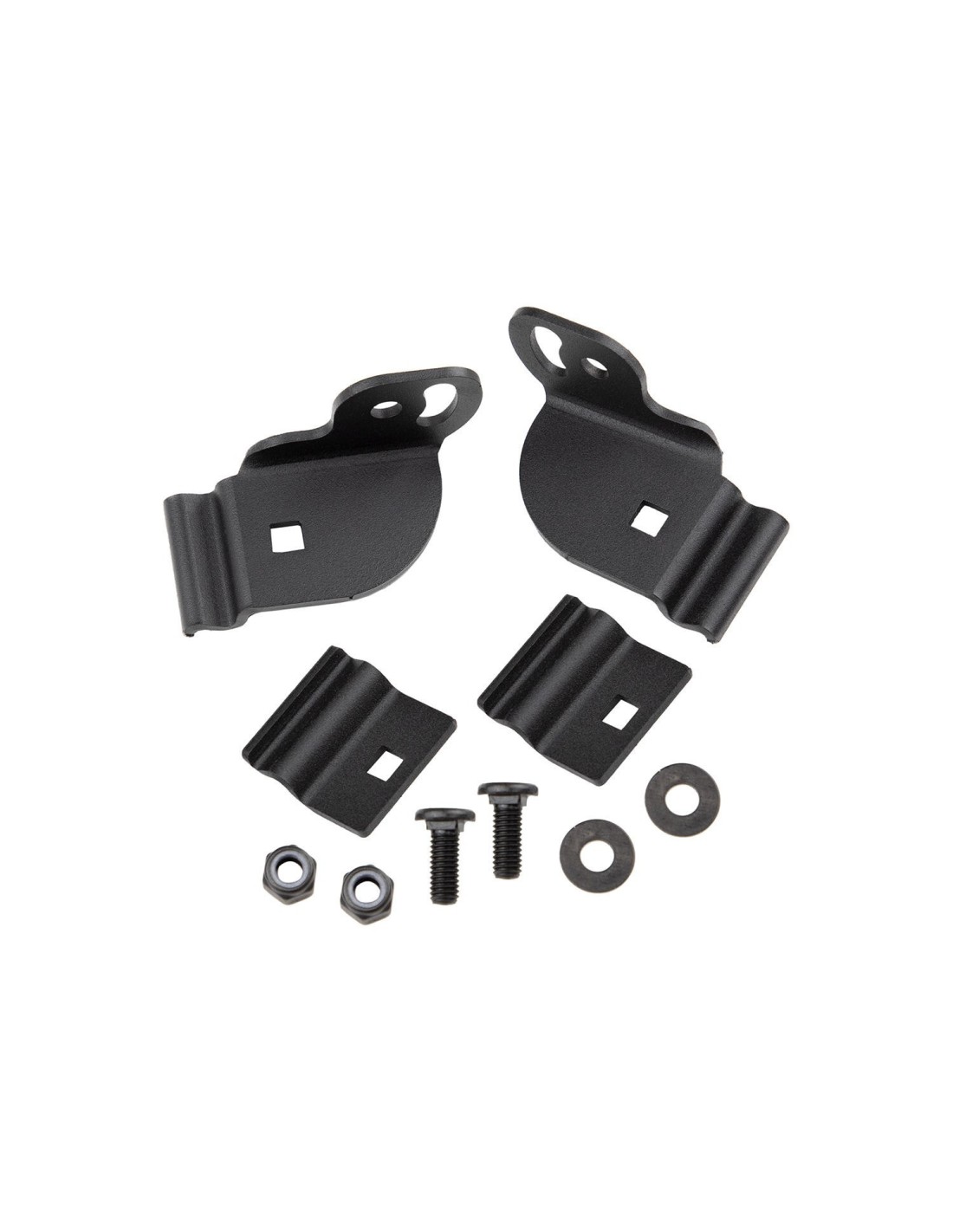

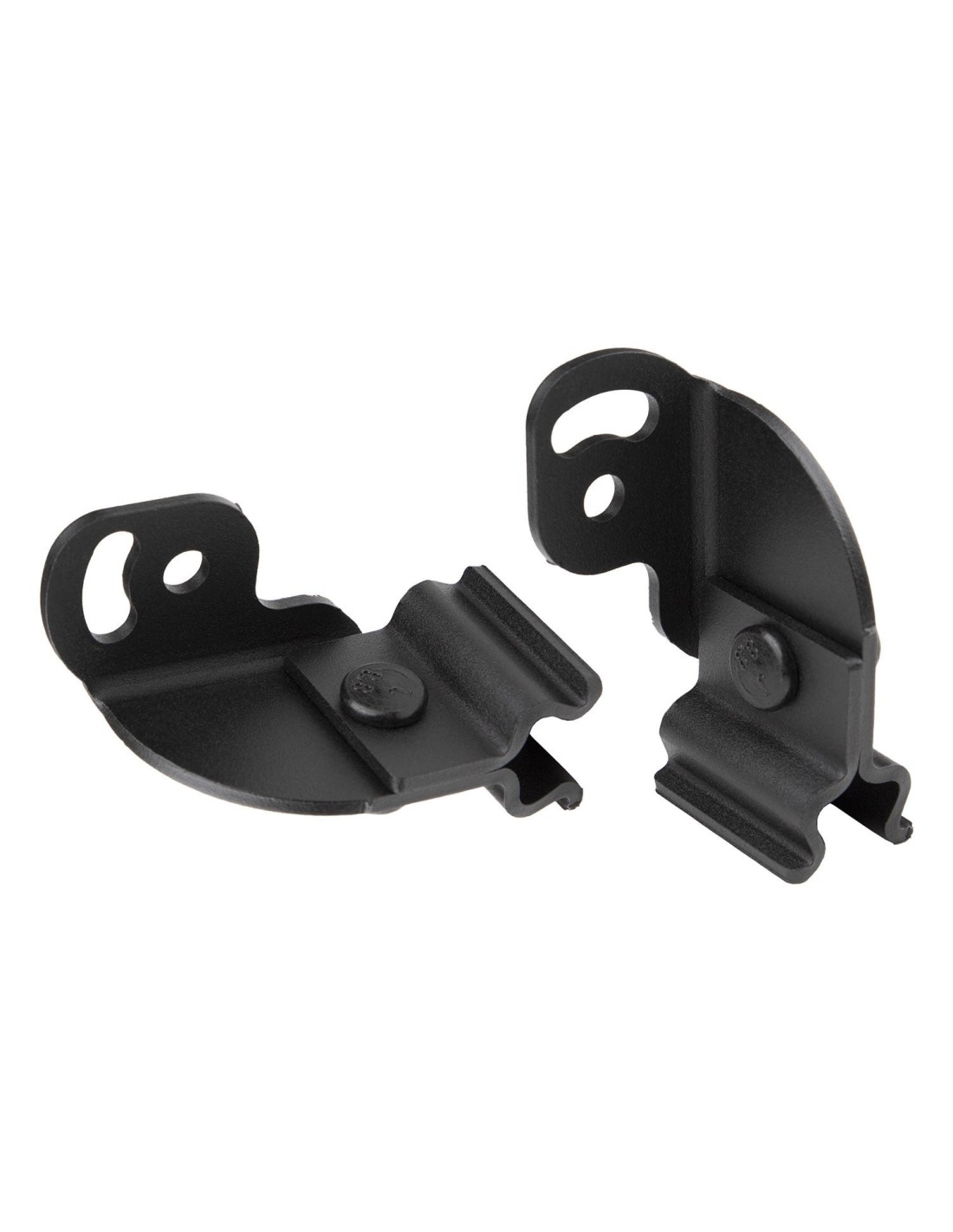

- To install the ARB-1780500 led bar when the roof gallery mounts an air deflector and a front guard, it requires an adapter ref : ARB -1780515
